1. Advantage:

• galvanized frame with powder coating for extra anti rust quality.

• strong = main frame thickness is 2-3mm

• with bigger size：standard flat pack container house is W2.25*L5.8*H2.60m or W2.438*L6.055*H2.6m，our this kind container house is with bigger size W3M*L5.95M*H2.8M

• doesn't need a crane for installation as the 3m X 5.95m container house，is totally disasembled to easy handled sections and all that is required is re assembly.

• they can be combined to make a bigger units or stacked 2-3 levels

• widely used for accormmodation,office,bathroom etc

• Because of big promotion now, these container houses are with a very competitive price

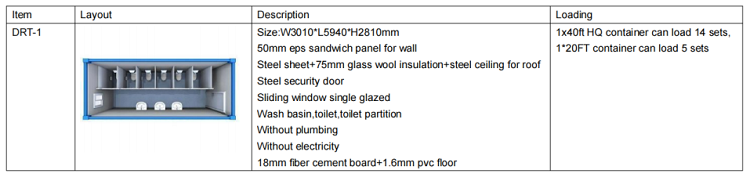

2.Technical Specs:

3.Container Engineering Report：

1.1 General Technical Condition

• The structure can prevent the 8 magnitude earthquake.

• The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal earthquake influence coefficient is 0.04, which is calculated by 5 years.

• Structural safety level is grade 2. The coefficient of importance is 1.0.

• Conner fitting elevation plus or minus zero.

1.2 Materials

Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized light steel.

strength of steel：f=215N/m²

1.3 Loading Combination

1.Calculation of floor Loading

(1)Bottom Flooring

• Structure Weight 0.4 kN/m²

• Dead Load Value 0.4 kN/m²

• Live Load Value 3.0 kN/m²

(2)Roof board

• Structure Weight 0.3 kN/m²

• Dead Load Value 0.3 kN/m²

• Live Load Value 0.5 kN/m²

2.Calculation of Wind loading

According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m²

4.Container frame：

5.Packing&shipping：

Special package way

almost all of the suppliers will load the parts of prefab container house pieces by pieces in container.the sandwich panel is easy to be damaged we weld

steel pallet on bottom,and wrape plastic film all around to protect the materials

for standard 20ft container home,1*20ft container can load 6 units,1*40HC container can load 15 units

for standard 20ft container frame,1*20ft container can load 25 units,1*40HC container can load 60 units

6.Successful container house projects：

we have done 5000+ successful container homes projects over 50 countries including australia,USA,germany,france,brazil etc.we provide one stop

solution for your modular container house projects including design,production,delivery,installation etc.

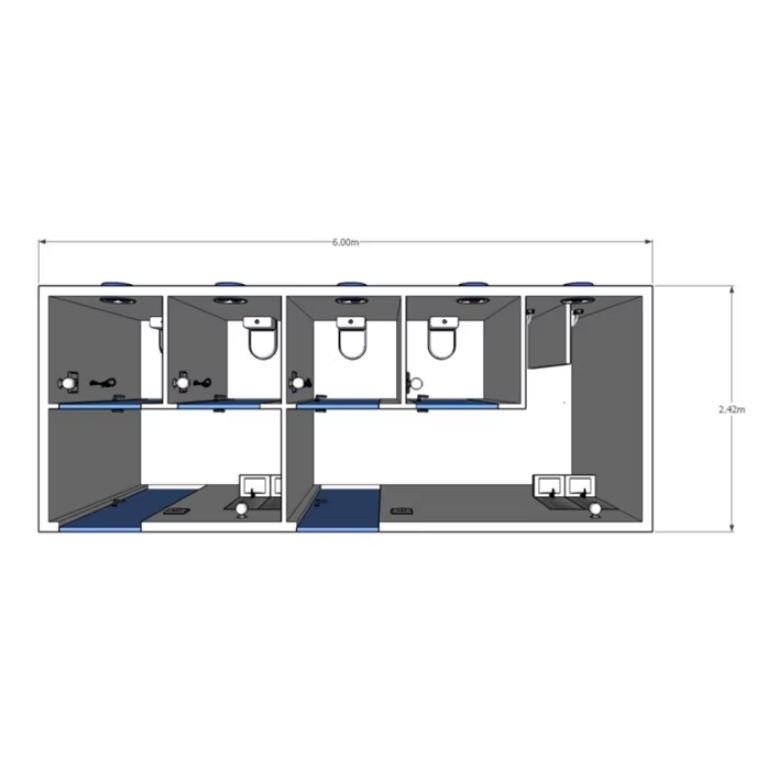

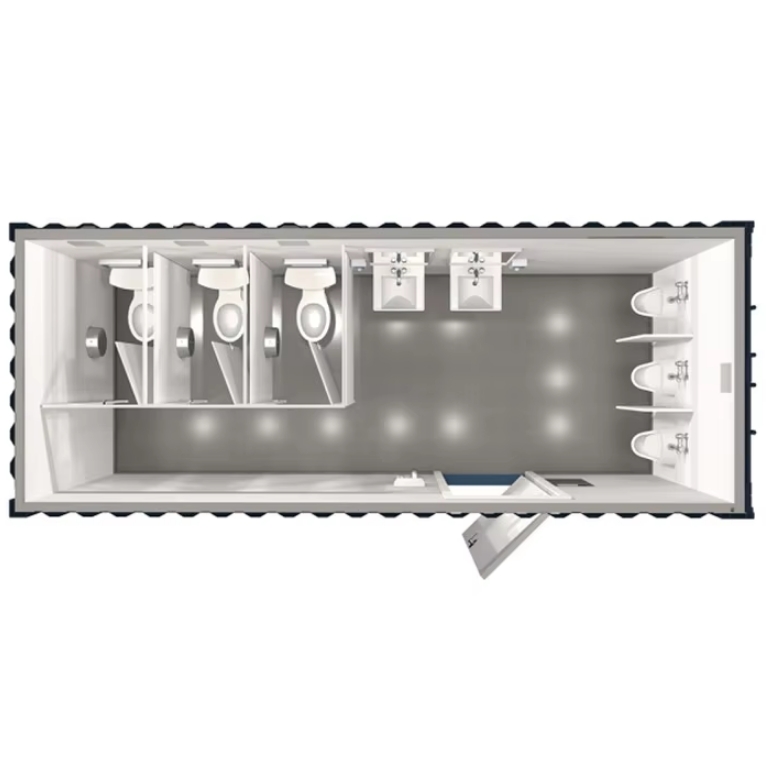

7.Container house designs and floor plans：
